Our Capabilities

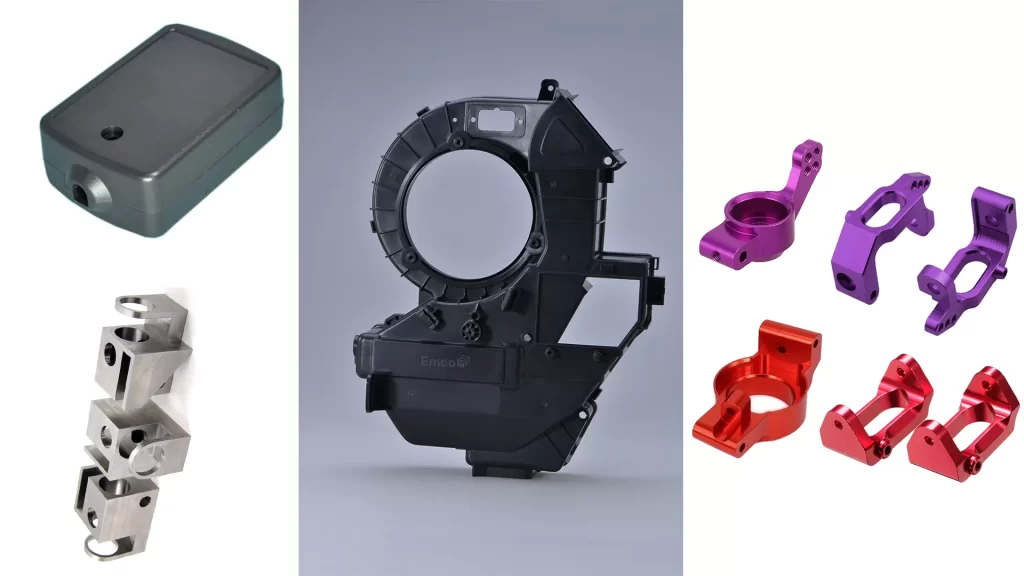

Our comprehensive manufacturing capabilities are tailored to fulfill your custom prototyping and production requirements. We specialize in CNC machining, injection molding, sheet metal fabrication, 3D printing, and other advanced technologies to meet the prototyping and part production needs of a wide range of industries.
Satisfy your prototyping and component production needs
Leading the industry in rapid prototyping and parts manufacturing, we empower product designers and engineers to create distinctive products for their markets. With strong production capabilities, comprehensive services, and rigorous quality control, we deliver fast and cost-effective solutions that enhance your brand.
The support offered by FUMING
Our expert engineers, with over 20 years of combined experience, review your drawings to design high-performance, cost-effective, and easy-to-manufacture molds. Every design file is carefully evaluated across multiple factors to ensure we produce the best possible molds.
- Wall Thickness
- Shrinkage
- Stress
- Functionality
- Aesthetics
- Dimensional Stability
- Cost
Processing Services We Offer
To help designers and engineers turn their concepts into reality, we provide a range of services covering rapid prototyping and mass production.

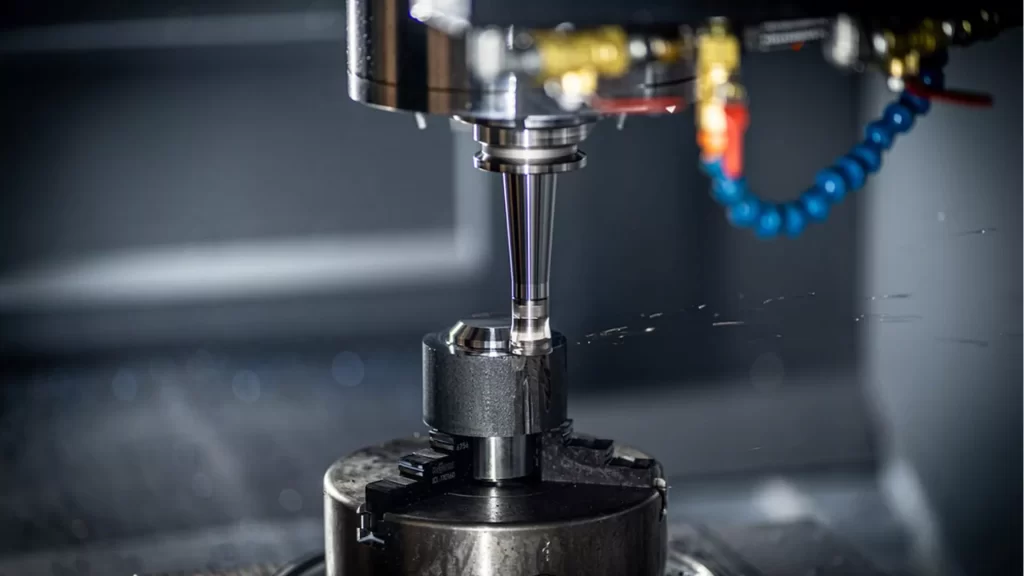

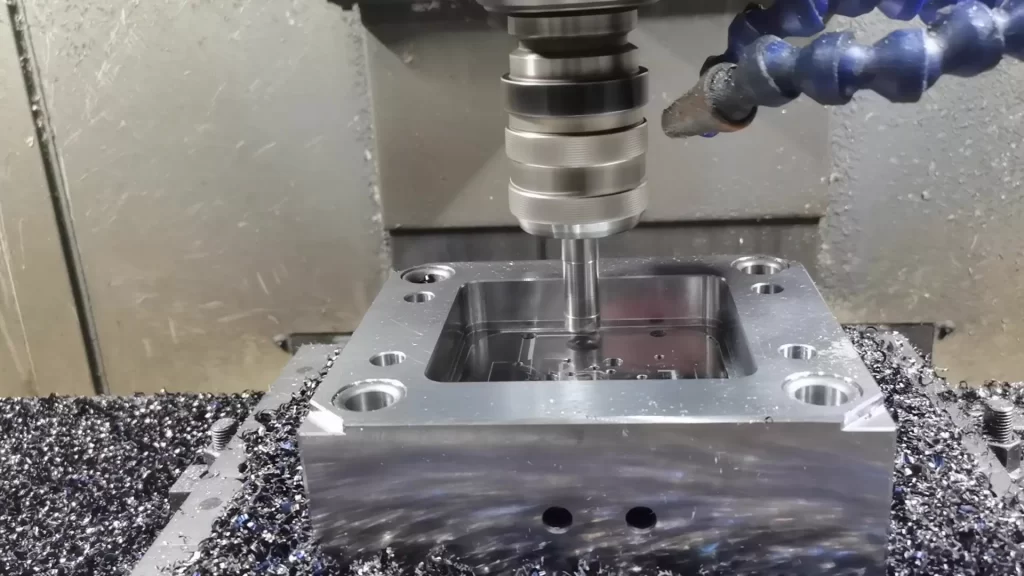

FUMING, provides high tolerance CNC machining processes including 3, 4, 5 axis CNC milling, CNC turning, and post-processing services for your diverse manufacturing requirements.
| Type | Tolerance |
| Linear dimension | +/- 0.025 mm +/- 0.001 inch |
| Hole diameters(not reamed) | +/- 0.025 mm+/- 0.001 inch |
| Shaft diameters | +/- 0.025 mm+/- 0.001 inch |
| Smallest thread size available | M1x0,25 |
| Part size limit | 950 * 550 * 480 mm37.0 * 21.5 * 18.5 inch |
At FUMING, we offer various injection molding services which includes rapid tooling, family molds, multi-cavity molds, over molding, etc., for your manufacturing needs. Each service is based on various manufacturing standards highlighted below:
| Part size (mm) | Production tooling | Rapid tooling |
| 1~22 | ±0.06~0.09 | ±0.08~0.13 |
| 22~70 | ±0.11~0.17 | ±0.14~0.24 |
| 70~160 | ±0.20~0.29 | ±0.30~0.43 |
| 160~250 | ±0.36~0.44 | ±0.51~0.68 |
| 250~315 | ±0.44~0.55 | ±0.68~0.85 |
| 315~500 | ±0.70~0.90 | ±1.08~1.38 |
| 500~1000 | ±1.20~1.90 | ±1.83~2.90 |
| 1000~1400 | ±2.30~2.65 | ±3.50~4.05 |
| 1400~2000 | ±3.05~3.80 | ±4.65~5.80 |
We have experience and the right sheet metal fabrication services necessary to bring that YOUR idea to life. This includes services like high tolerance and wide thickness range laser cutting, bending capabilities, and other post-processing options.
| Dimension detail | Tolerance |
| Edge to edge, single surface | +/- 0.005 inch |
| Edge to hole, single surface | +/- 0.005 inch |
| Hole to hole, single surface | +/- 0.005 inch |
| Bend to edge / hole, single surface | +/- 0.010 inch |
| Edge to feature, multiple surface | +/- 0.030 inch |
| Over formed part, multiple surface | +/- 0.030 inch |
| Bend angle | +/- 1° |
3D Printing is the best service if you want the best functional parts prototyping. At FUMING, we provide you with the best technologies in 3D printing such as FDM, SLA, SLS, Polyjet. For other technologies associated kindly contact us.
| Process | Min. wall thickness | Layer height | Max. build size | Tolerance | |
| SLA | 1.0 mm | 50 – 100 μm | 250 * 250 * 250 mm | ± 0.5% with a lower limit of ± 0.5 mm (± 0.020″) | |
| SLS | 1.0 mm | 100 μm | 420 * 500 * 420 mm | ± 0.5% with a lower limit of ± 0.15 mm (± 0.006″) | |
| FDM | 1.0 mm | 100 – 300 μm | 500 * 500 * 500 mm |
|
Urethane casting (also known as RTV molding, cast urethane, and silicone molding) is a fabrication method that uses silicone molds to produce production-grade elastomeric parts with 10-200 units.
| Typical lead time | Up to 20 parts in 15 days or less, depends on the part specification and volumes. |
| Accurate | ± 0.3% (with lower limit on ± 0.3 mm on dimensions smaller than 100 mm) |
| Minimum wall thickness | To ensure that the mold is filled properly, a wall thickness of at least 0.75 mm is necessary. For best results, we recommend a wall thickness of at least 1.5 mm |
| Maximum part dimensions | The size of the mold is limited by the dimensions of the vacuum chamber (1900 x 900 x 750 mm) and by the volume of the product (maximum volume: 10 liters) |
| Typical quantities | Up to 25 copies per mold (depending on the mold’s complexity and the casting materials) |
| Color & Finishing | Pigment is added to the liquid polyurethane prior to casting, custom painting and texture. |
CNC machining, 3d printing, sheet metal fabrication, and more are available to support rapid prototyping. We offer a full range of surface finishes and materials to support one-roof and rapid manufacturing and processing to help test your design.
On-Demand Custom Manufacturing
Alongside our strong manufacturing capabilities, we also enable you to choose the production volume and processes that best match your needs.
Rapid Prototyping
We utilize the latest technology and equipment to produce prototypes quickly and precisely, helping clients shorten product development time and reduce costs.
Typical Lead Time: 3-5 days
Low Volume Manufacturing
For batch manufacturing, we offer several options to meet your needs, including vacuum casting, CNC machining, and plastic injection molding.
Typical Lead Time: 5-7 business days
High Volume Manufacturing
To meet large-volume manufacturing needs, leverage our capabilities in plastic injection molding, sheet metal fabrication, and other production processes.
Typical Lead Time: 2+ weeks
Quality Control Visible Throughout
FUMING prides itself on applying strict quality control standards throughout every stage of our production process. Our expert quality auditors meticulously inspect each product for any inconsistencies, ensuring attention to detail at every step.
IS09001:2015 Certified Factory
Our factory holds ISO 9001:2015 certification—proof of our commitment to quality.
Well-vetted Suppliers
Close partnerships with thousands of reliable material suppliers ensure consistent access to high-quality materials.
Rigorous Quality System
Our strict commitment to quality control standards ensures consistent quality is maintained throughout the production process.
Strict Manufacturing Standard
The facility adheres to established manufacturing standards such as DIN-2768-fine and DIN-2768-medium.
Advanced Testing Facilities

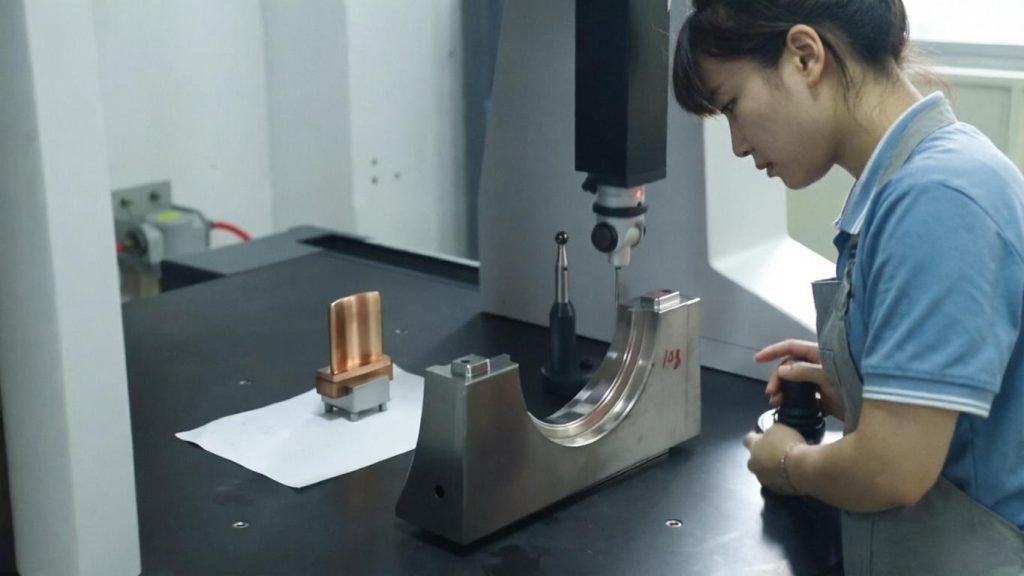

Completed prototypes undergo testing using various machines, including profile projectors, CMMs, and 3D scanners.
Complete Quality Report
Receive detailed quality reports from our in-house quality team or third-party laboratories.
FUMING Team
We offer exceptional post-order support, giving you the confidence to launch your products in the market. Expert technicians with over a decade of industry experience and deep product knowledge assist with troubleshooting and optimizing product usage.
Technical Support
Project Management
