Die Casting Mold Manufacturing
Searching for a quality die casting mold manufacturer? Fuming is a custom designer, manufacturer, and supplier of high-quality die-cast molds tailored to your project specifications. Contact us today to request a quote for your die casting mold requirements.
Die Casting Mold Manufacturing Services
If your project requires custom die-cast molds, you’ve come to the right place. Fuming is a premier mold manufacturing services company in China, specializing in delivering affordable, high-quality components—including plastic molds, formed parts, and die-cast molds and parts for lighting, medical, automotive, electrical, and numerous other industries. We provide comprehensive solutions encompassing molds and molded parts, including all finishing steps, surface treatments, and assembly requirements.
Our experienced engineers leverage the latest CAD/CAM software and CNC machining technology to produce durable, high-performance molds optimized for your specific application. We offer complete mold design services, including manufacturability analysis, simulation, and prototyping to ensure flawless mold performance. With advanced equipment and deep technical expertise, Fuming can deliver complex, tight-tolerance die casting molds precisely tailored to your specifications. Our molds enable rapid, efficient, high-volume production of quality die cast components.
Die Casting Mold – Online Quotation
Finding engineer-led quotations too slow? Try the instant quoting system developed by Fuming. Upload your drawings and receive quotes within seconds.
What Are Die Casting Molds?
Die casting molds are tools used for casting metal components, specifically designed to perform the die casting process on specialized die casting machinery. The fundamental process involves first filling the mold cavity with liquid metal at either low or high speed, utilizing a mold equipped with a movable cavity surface. The material is then forged under pressure as the liquid metal cools, which not only eliminates shrinkage defects in the casting but also refines the internal structure to achieve a forged-like grain configuration. As a result, the comprehensive mechanical properties of the finished component are significantly enhanced.
Mold Materials For Die Casting
FUMING offers die casting mold for aluminum, zinc alloys and steel, stainless steel: 4140, 4130, A36, 1018, 303, 304, 410, 17-4, 2205 Duplex, 440C, 420, 316, 904L, 2024, 5083, 6061, 6063, 7050, 7075, etc.
How Are Die Casting Molds Manufactured?
Die casting is a manufacturing process commonly used to produce precisely dimensioned, well-defined metal parts with smooth or textured surfaces. It involves forcing molten metal under high pressure into reusable metal dies. The die casting mold manufacturing process follows these key steps:
A mold is created in at least two sections to allow proper removal of the finished casting.
The mold sections are securely mounted within the machine, with one section stationary and the other movable.
The two halves are firmly clamped together.
Molten metal is injected into the die cavity, where it rapidly solidifies.
The die halves are separated, and the finished casting is ejected.
Compared to sand casting or permanent mold processes, high-pressure die casting (HPDC) is the fastest method for producing precise non-ferrous metal components.

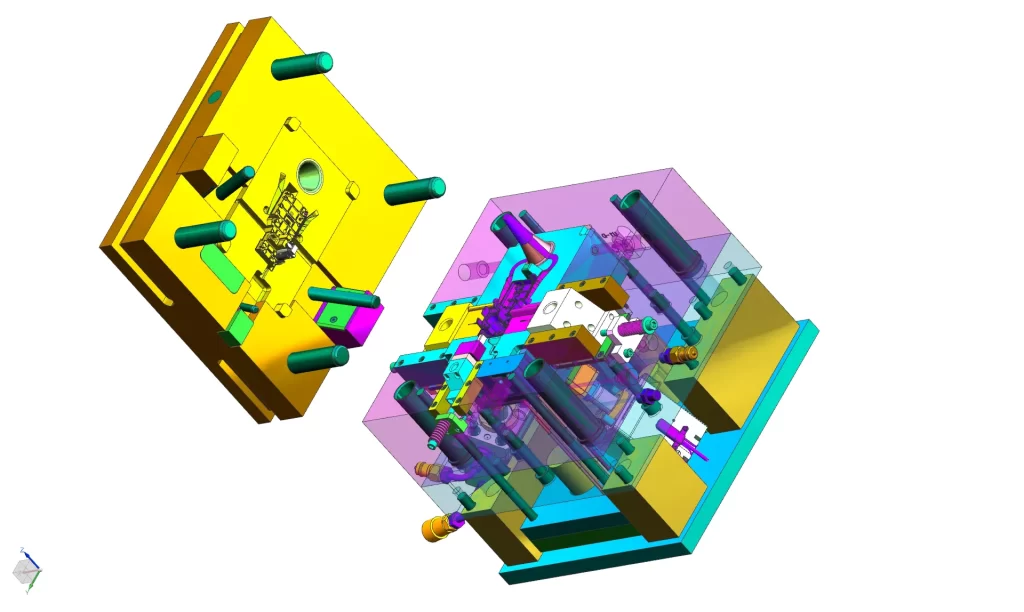

Additional Considerations for Die Casting Mold Design
The quality of a die casting mold design significantly influences both the properties of the finished casting and overall economic efficiency. When designing and producing a die casting mold, the following factors should be carefully considered:
- Proper dimensioning of the die casting mold
- Selection of appropriate mold steels (such as hot-forming steel) and their corresponding heat treatments
- Design of thermal fluid systems for die heating and cooling
- Design and calculation of the casting system and forced ventilation
- Ease of maintenance and serviceability
- Production methods adapted to expected service life
- Determination of optimal number of mold cavities
Advantages of Our Mold Making Service
- We have over 10 years of experience in die casting mold parts manufacturing, earning a strong reputation.
- Our engineers leverage extensive experience to combine multiple processes, reducing costs and delivering cost-effective die casting mold products.
- Parts are completed on time to provide robust support for your R&D projects.
- Exceptional customer service and clear communication throughout every project.
- Precision die casting molded parts manufactured according to your drawings or sample specifications.
- High production capacity combined with competitive pricing.
