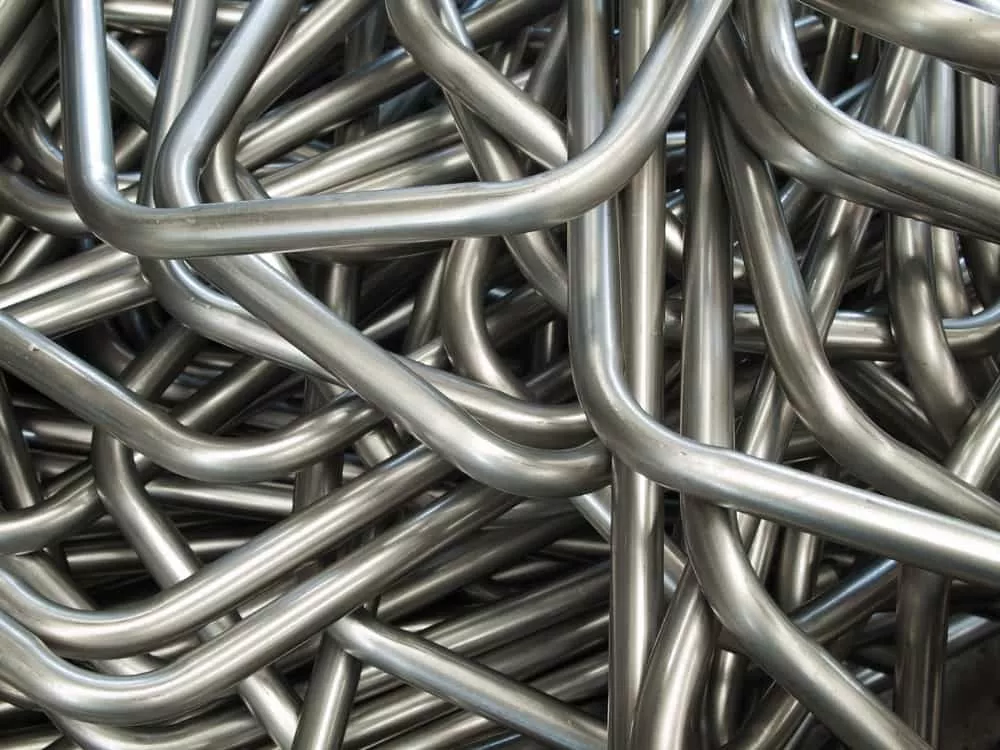

Tube Bending Services
Fuming provides tube bending and fabrication services for metallic pipe and tube stock to meet your project requirements.
Tube Bending Company in China
As a comprehensive metal manufacturer, Fuming delivers a wide range of solutions designed to enhance your processes and boost profitability. If you are seeking a dependable partner for tube bending, tube forming, and pipe cutting in China, we serve as your one-stop shop for all requirements. We eliminate time-consuming and costly steps from the supply chain while supplying high-quality tubular parts and products tailored to your specific needs. Regardless of your tube bending project’s scope, Fuming is prepared to support you.
Applications for Tube Bending Services
From musical instruments and sculptures to custom bicycle frames, the uses for bent pipe are virtually limitless. Fuming has served a diverse clientele across multiple industries. Examples of applications utilizing our structural pipe and tube bending services include:
- Elbows and u-joints
- Handrails
- Bike racks
- Chassis components
- Axles for lawnmowers and other pieces of equipment
- Fences
- Gates
- Furniture frames
- Marine rails
- Roll cages
- Exhaust pipes
- Large pipes for power plants, oil and gas pipelines and freeway signs

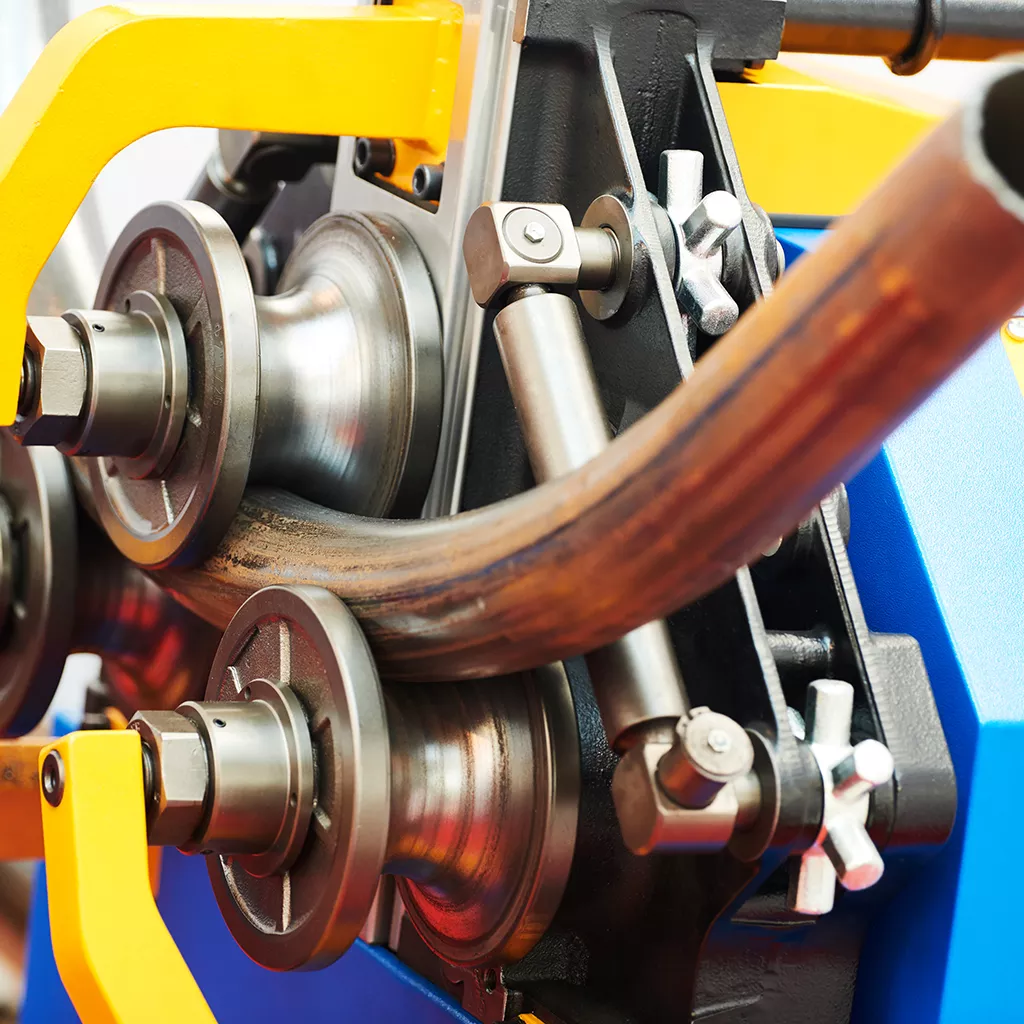

What Is the Tube Bending Process?
Tube bending encompasses a range of manufacturing techniques used to reshape pipes or tubes, creating specific geometries or features that satisfy particular requirements. During the process, tube stock is placed into a bending machine, which applies mechanical force to press the tube against dies and rollers, gradually conforming it to the desired shape. Tubes can be bent in two dimensions, where both openings remain aligned on the same plane, or in three dimensions, where the openings lie on different planes.

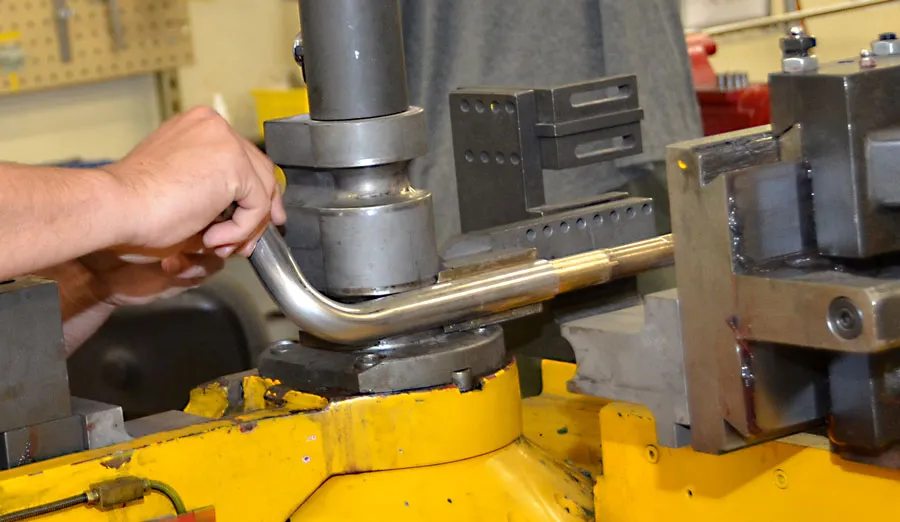

The Specific Process of CNC Tube Bending
Below is an example of the CNC tube bending process using an electric or hydraulic CNC tube bending machine, a common choice for precision bending:
- The metal tube is cut to size with a clean, dry cut free of oils.
- The cut tube section is inserted into the bender’s mandrel and securely clamped.
- The CNC operator loads the program containing the part number, which instructs the machine on the correct bending sequence.
- The operator initiates the process using a foot pedal, an integrated safety feature of the bender.
- The tube is bent in under one minute through the mechanical force applied by the machine.
Tube Bending Material Options
Various materials exhibit different reactions to bending, even when technicians apply identical equipment and methods. Given that the process stretches materials to a certain extent, more flexible metals typically perform best.
| Material | Round Tube | Pipe | Rectangular Tube | Square Tube |
|---|---|---|---|---|
|
Aluminum |
|
|
|
|
|
Steel |
|
|
|
|
|
Stainless Steel Tubes |
|
|
|
|
|
Brass |
|
|
|
|
|
Copper |
|
|||
|
Titanium |
|
Bend Requirements
Fuming accommodates a broad range of tube bending requirements; certain details are helpful when preparing a quote, including the following specifications:
- Center line radius
- Bend radii
- Tube profile (round, square, etc.)
- Tube wall thickness
- Tube diameter (based on schedule or wall thickness)
- Type of bend (‘L bend’, ‘U bend’, ‘S bend’, ‘Coil bend’, or a combination of bends)
- Project volume (can handle thousands of pieces)
Tube and Pipe End Finishing Services
Fuming provides finishing options for tube and pipe ends to meet all your product requirements, including the following:
- Reducing or expanding end sizes
- Beveling
- Chamfering
- Facing
- Flanging
- Flaring
- Flattening
- Swaging
- Reaming
- Bead creation
- Roll Grooving
Industries Served
Tube bending serves a wide range of industries, from architectural and lighting fixtures in buildings to vehicle exhaust systems. Below is a list of key sectors where our tube fabrication and bending services are particularly well-suited:
- Aerospace
- Medical & Pharmaceutical
- Architectural & Lighting
- Automotive
- Oil & Gas
- Aviation
- Marine & Shipbuilding
- Construction
Benefits of CNC Tube Bending
CNC tube bending offers greater precision, automation, and repeatability compared to manual bending methods. Unlike manual processes, CNC tube bending machines precisely control bend angles, distances between bends, and bend planes. This advanced level of control maximizes accuracy and enables more complex bending operations than manual techniques allow, while significantly improving overall production efficiency.
Additional advantages include:
- Complex assemblies benefit from the elimination of welds, joints, and costly fixtures when using CNC bending machines.
- CNC bending represents a cleaner manufacturing alternative compared to traditional bending and welding processes.
- Projects become more economical, as fewer fittings directly reduce overall expenses—eliminating five fittings from each of ten systems effectively saves the cost of fifty components.
- Removing welds and joints also eliminates potential leak points that often occur in welded or assembled systems.
- The semiconductor industry particularly benefits from systems built without the wall thinning associated with welded constructions, as CNC bending preserves material integrity.
- CNC bending produces a superior surface finish compared to other methods, appealing to engineers who prioritize cosmetic appearance in system implementation.
- Reducing the number of bends minimizes flow restrictions for chemicals and liquids that might otherwise become trapped in joints or sharp corners.
- Precision tube and pipe systems are manufactured faster and more accurately on CNC bending machines, achieving time savings of up to 95 percent.
